Frames & Elements

Everything in Caja is a frame. A frame is a node in the layout tree with properties that map to CSS.

Element Types

Type	Description	HTML Tag
Box	Generic container	div, section, header, footer, nav, main, article, aside, ul, ol, li, form
Text	Text content	p, h1–h6, span
Image	Image element	img
Button	Clickable button	button
Input	Form input (text, email, password, number, search, tel, url, date, time, checkbox, radio, range)	input
Textarea	Multi-line input	textarea
Select	Dropdown select	select
Link	Anchor link	a

The Link element is a text element with an <a> tag and an href property. Use it for navigation between pages or to external URLs.

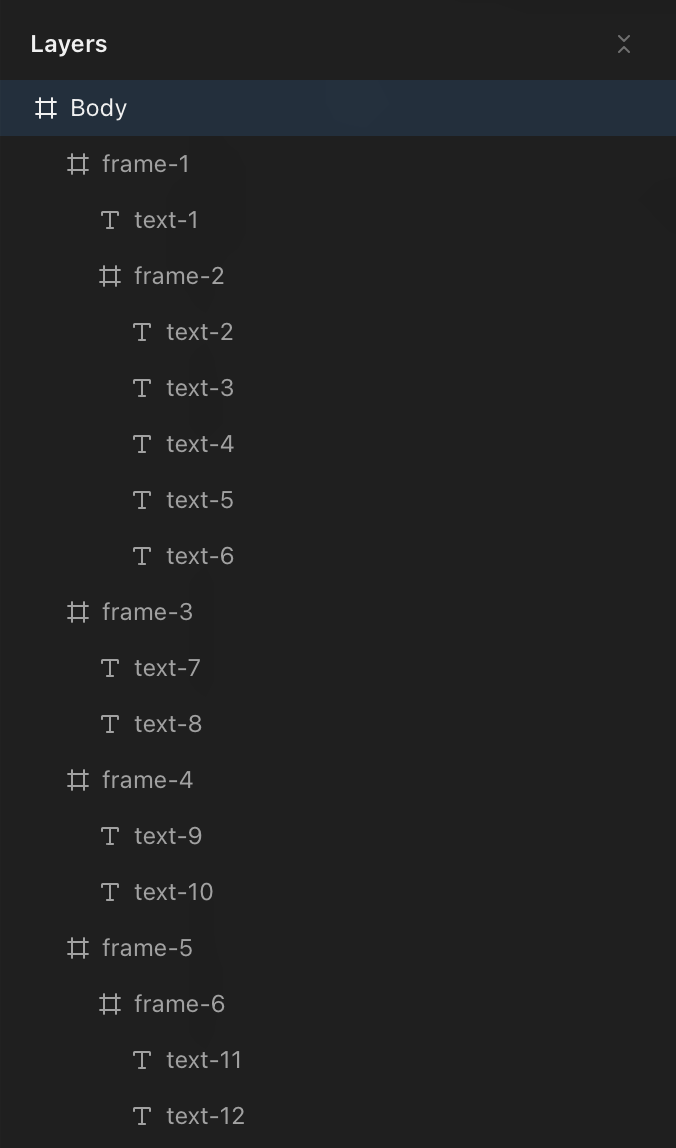

The Frame Tree

Frames are nested in a tree structure. Every page has a root frame (called Body in the Left Panel) that acts as the top-level container. All other frames are children (or descendants) of the root.

Properties

Every frame has these core properties:

• Name — Display name, used as labels, override keys, and class names in export
• HTML Tag — The semantic tag for export (configurable via the <> selector)
• Class — Custom CSS class name for export
• HTML ID — Custom id attribute for export
• Hidden — Toggle visibility without deleting the frame. Hidden frames emit a hidden Tailwind class

Component instances have an additional _componentId link to their master, shown with a component icon in the layers panel.

Naming

Every frame has a display name. Names are used as:

• Labels in the Left Panel
• Override keys when using components
• Class names in exported code

Double-click a frame in the tree or press F2 to rename it.

Grouping

Select one or more frames and press ⌘G to wrap them in a new parent box. Press ⌘⇧G to ungroup (remove the wrapper and move children up).
